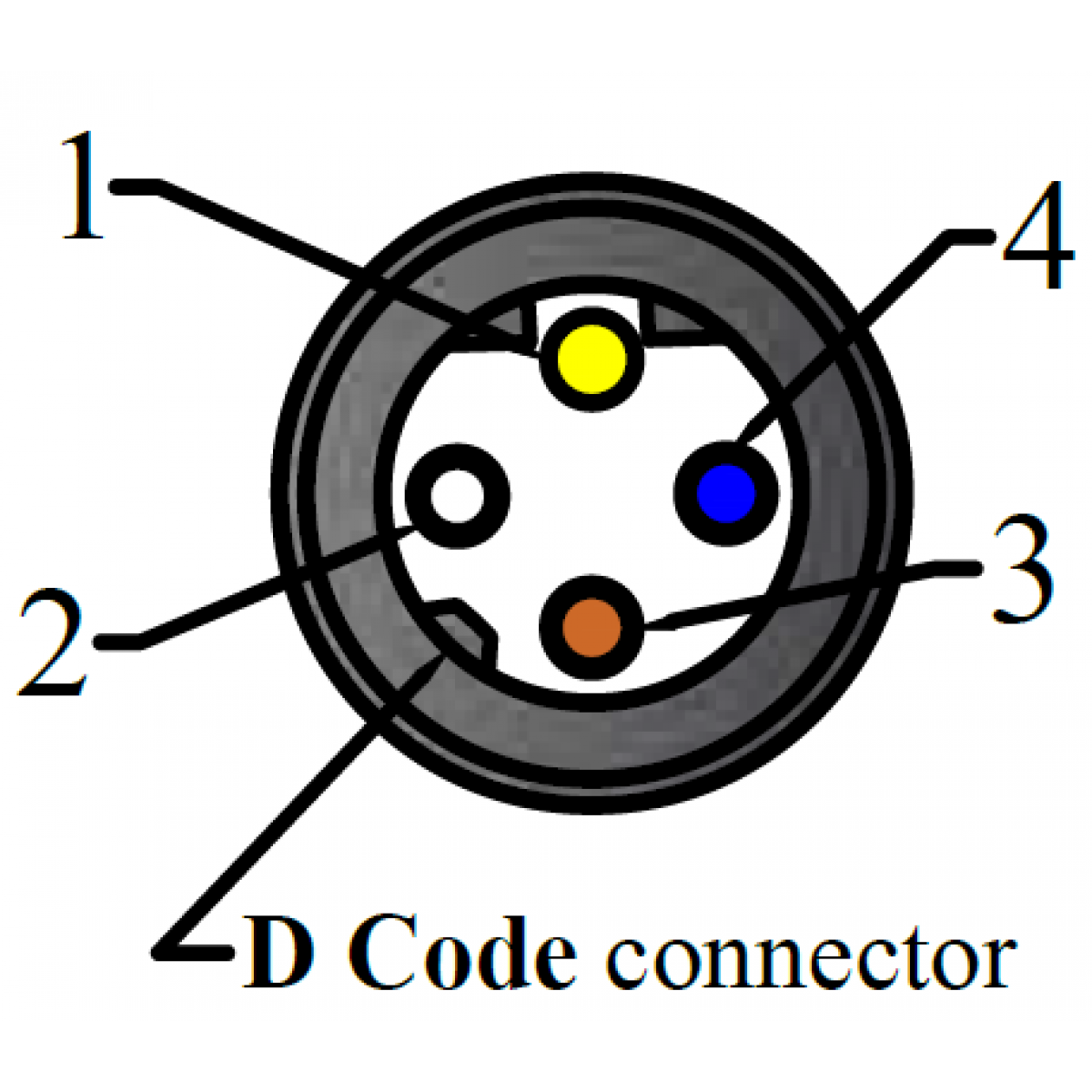

- M8 Male Straight D Code to Rj45 Male Straight Pur Shielded Green Cable-5 mtr is available in a variety of lengths and colours, so you can find the perfect option for your Application.
- Customized Cable Length Available
- Cable: PUR
- Degree of Protection: IP67 / IP68 / IP69
-
| Product Type | |
| Type | PROFINET Technology |
| General Features | |
| Degree of protection | IP67, IP68, IP69 |
| Wire Cross Section | 4*0.14 SQMM |
| Temperature Range | -25…..+80°C* depending on Cable |
| Cable Diameter | 5±0.2mm² |
| Color of the Cable Mantle | Green |
| Material of the Cable Mantle | PUR |
| Cable Length | 1Mtr / 2 Mtr / 3 Mtr / 5 Mtr / 10 Mtr * |
| Technical Specification | |
| Housing Material | TPU |
| Pin Contact | CuZn |
| Frequency Range | Up to 100 MHz |
| Cable Drag Chain Suitable | 2/5/10 Million Times * |
| Bending Radius (Fixed) | 8 times of OD |
| Bending Radius (Repeated) | 12 times of OD |
| Contact Plating | Au |
| Operating Voltage | 60V AC/DC * |
| Rated Current | 4A |
| Halogen free | Yes |

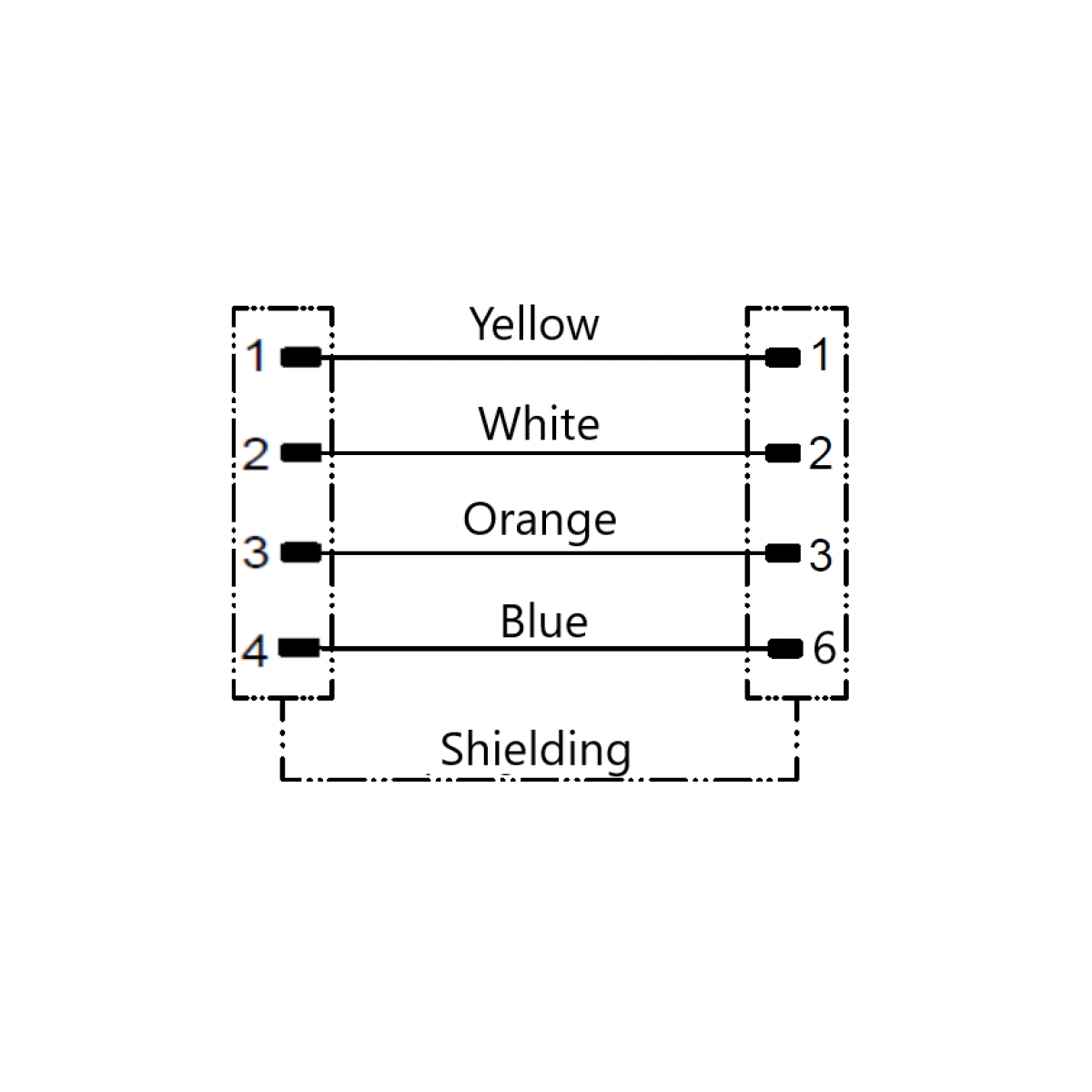

| Connector Type | M8 Male Straight to RJ45 Shielded Male Straight |
| Stripping Force | 15-35 N |
| Approvals | |
| Transmission Speed | 1000 Mbps |
24845-9696-4948-414-0500-Gn
- Brand: LEI INDIA
- Product Code: M8-RJ45 EXT Male Straight 4 Pins AWG26 CAT5e SH PUR GN
- Stock Qty: Lead Time
-
Ask for Quote
Tags: PROFINET Technology
