2412W-96-164-03-0000
MPN: 2412W-96-164-03-0000
M12
A-Code
IP67

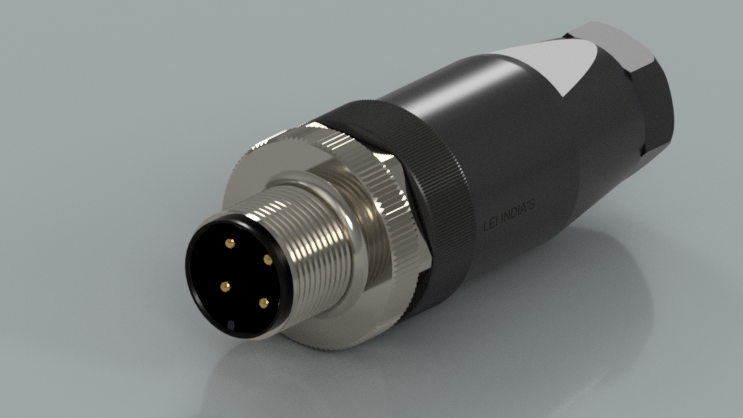

M12 A Code 4 Pin Male Straight Un-shielded Screw Type Field Wirable Connector
Downloads
Quick Specs
- Operating Voltage
- 250 V
- Rated Current
- 4A
- Temperature Range
- -40…. +85°C* depending on cable
- Degree of Protection
- IP67
Technical Specifications
| Specification | Value |
|---|---|
| MPN | 2412W-96-164-03-0000 |
| Product Type | Field Wireable |
| Coupling | Inserted |
| Degree of Protection | IP67 |
| Temperature Range | -40…. +85°C* depending on cable |
| Material of Gland | Zinc Die Cast, Nikel Plated |
| Housing Material | Zinc Die Cast |
| Pin Contact | Gold Plated |
| Socket Contact | Copper alloy |
| Cable Drag Chain Suitable | No |
| Tightening Torque Maximum | 0.6 Nm |
| Bending Radius (Fixed) | 5 times of OD |
| Bending Radius (Repeated) | 10 times of OD |
| Contact Plating | Nickel Plated |
| Operating Voltage | 250 V |
| Rated Current | 4A |
| Halogen Free | No |
| Connector Type | M12 |

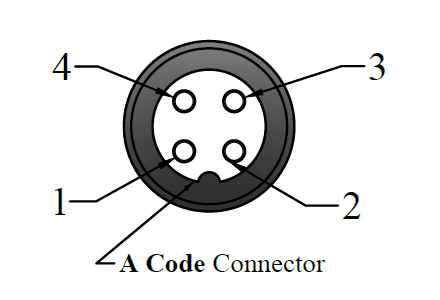

| Code | A |
