2478W-96-165-2150-1000
MPN: 2478W-96-165-2150-1000
A-Code
IP67

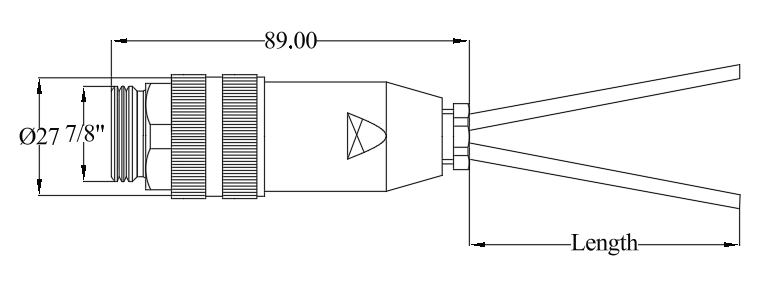

7/8” Field Wireable A Code Male Straight 5 Pin With 2X1.5sqmm PVC Unshielded Cable - 10 mtr
Downloads
Quick Specs
- Operating Voltage
- 250 V
- Rated Current
- 9A
- Temperature Range
- -40…. +85°C* depending on cable
- Degree of Protection
- IP67
Technical Specifications
| Specification | Value |
|---|---|
| MPN | 2478W-96-165-2150-1000 |
| Product Type | 7/8" connector with cable |
| Coupling | Inserted |
| Degree of Protection | IP67 |
| Wire Cross Section | 1.5 sqmm |
| Temperature Range | -40…. +85°C* depending on cable |
| Cable Diameter | 5.0±0.2mm |
| Color of Cable Mantle | Black |
| Material of Cable Mantle | PVC |
| Cable Length | 10 mtr |
| Material of Gland | Nylon |
| Housing Material | Nylon |
| Pin Contact | Gold Plated |
| Socket Contact | Copper alloy |
| Cable Drag Chain Suitable | No |
| Tightening Torque Maximum | 0.6 Nm |
| Contact Plating | Gold |
| Operating Voltage | 250 V |
| Rated Current | 9A |
| Halogen Free | No |

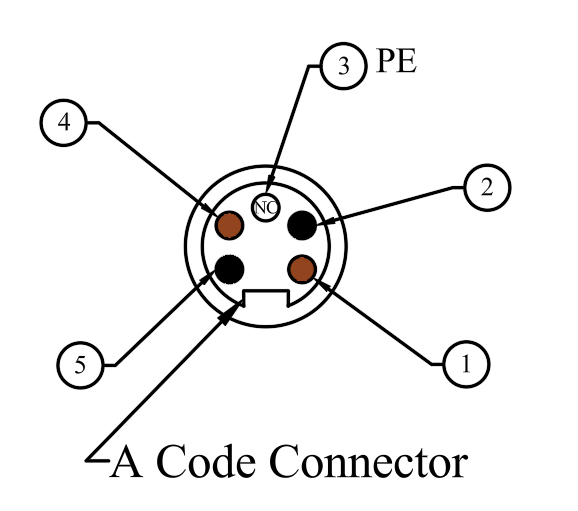

| Code | A |
