2412D-96-104-000-0000
MPN: 2412D-96-104-000-0000
M12
A-Code
IP67,IP68

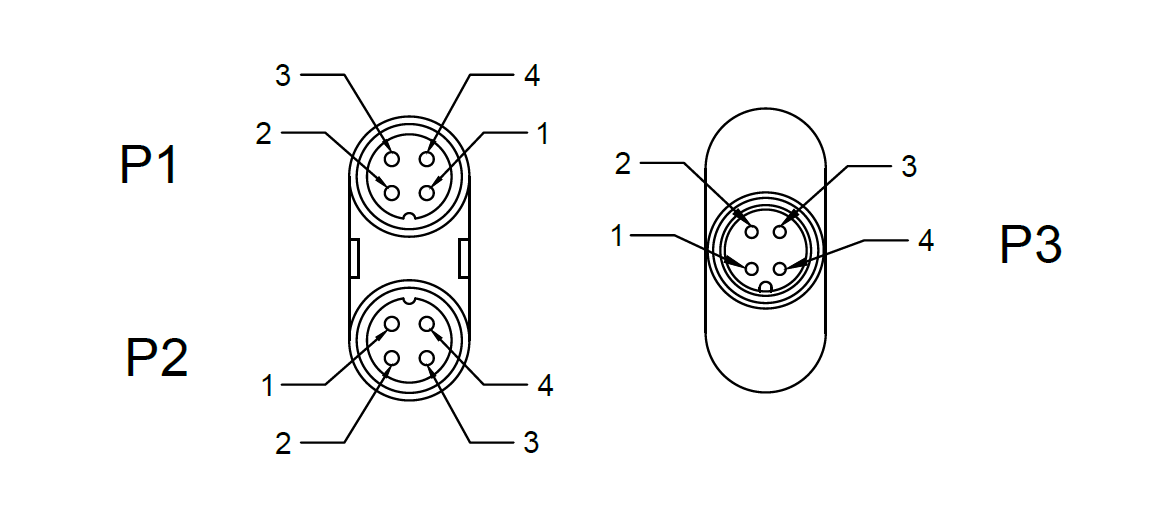

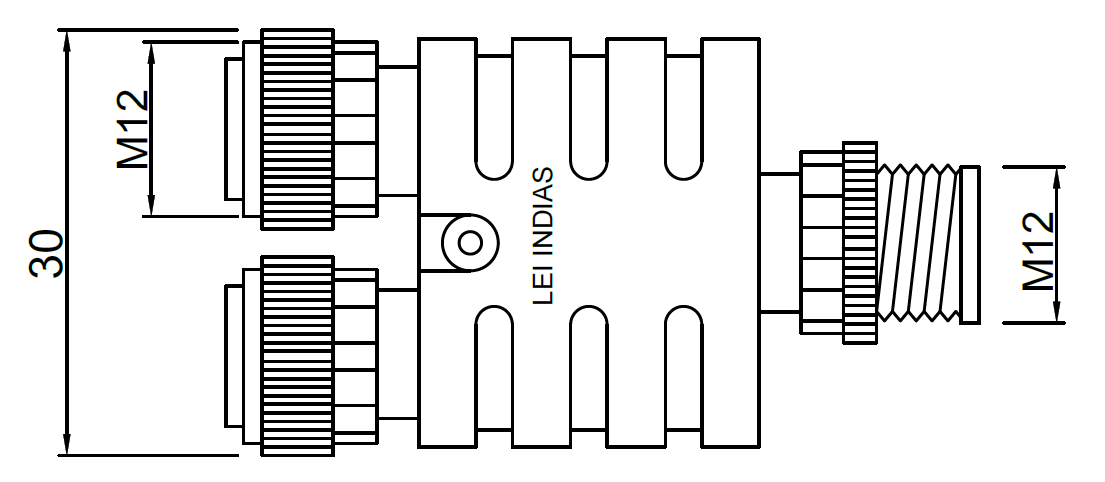

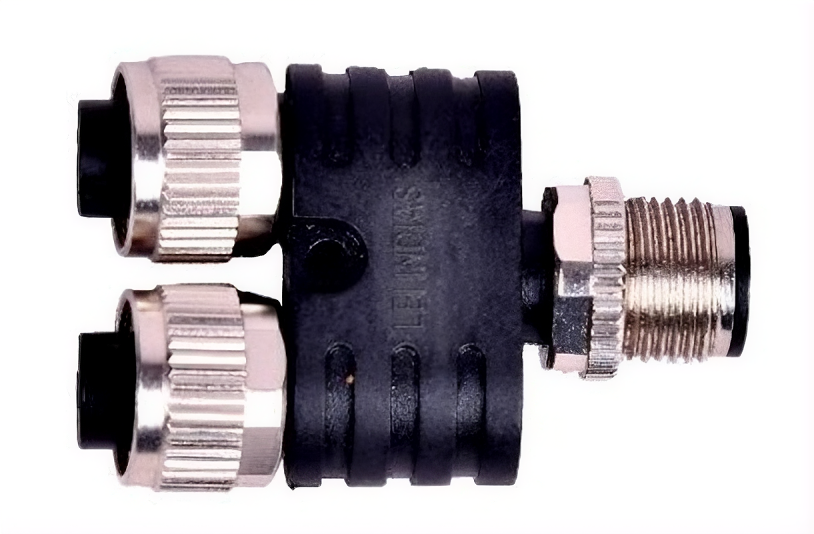

Y-Splitter with 1xM12 A Code 4 Pin Male to 2xM12 A Code 4 Pin Female
Downloads
Quick Specs
- Operating Voltage
- 60V AC/DC *
- Rated Current
- 4A
- Temperature Range
- -40…. +85°C* depending on cable
- Degree of Protection
- IP67,IP68
Technical Specifications
| Specification | Value |
|---|---|
| MPN | 2412D-96-104-000-0000 |
| Product Type | Y Splitter |
| Coupling | Inserted |
| Degree of Protection | IP67,IP68 |
| Temperature Range | -40…. +85°C* depending on cable |
| Material of Gland | Brass with Nickel Plating |
| Housing Material | TPE |
| Pin Contact | CuZn |
| Socket Contact | CuSn |
| Cable Drag Chain Suitable | No |
| Tightening Torque Maximum | 0.6 Nm |
| Contact Plating | Au |
| Operating Voltage | 60V AC/DC * |
| Rated Current | 4A |
| Halogen Free | No |
| Connector Type | M12 |
| Code | A |
