241245-9696-9098-814-2500-Gn
MPN: 241245-9696-9098-814-2500-Gn
RJ45

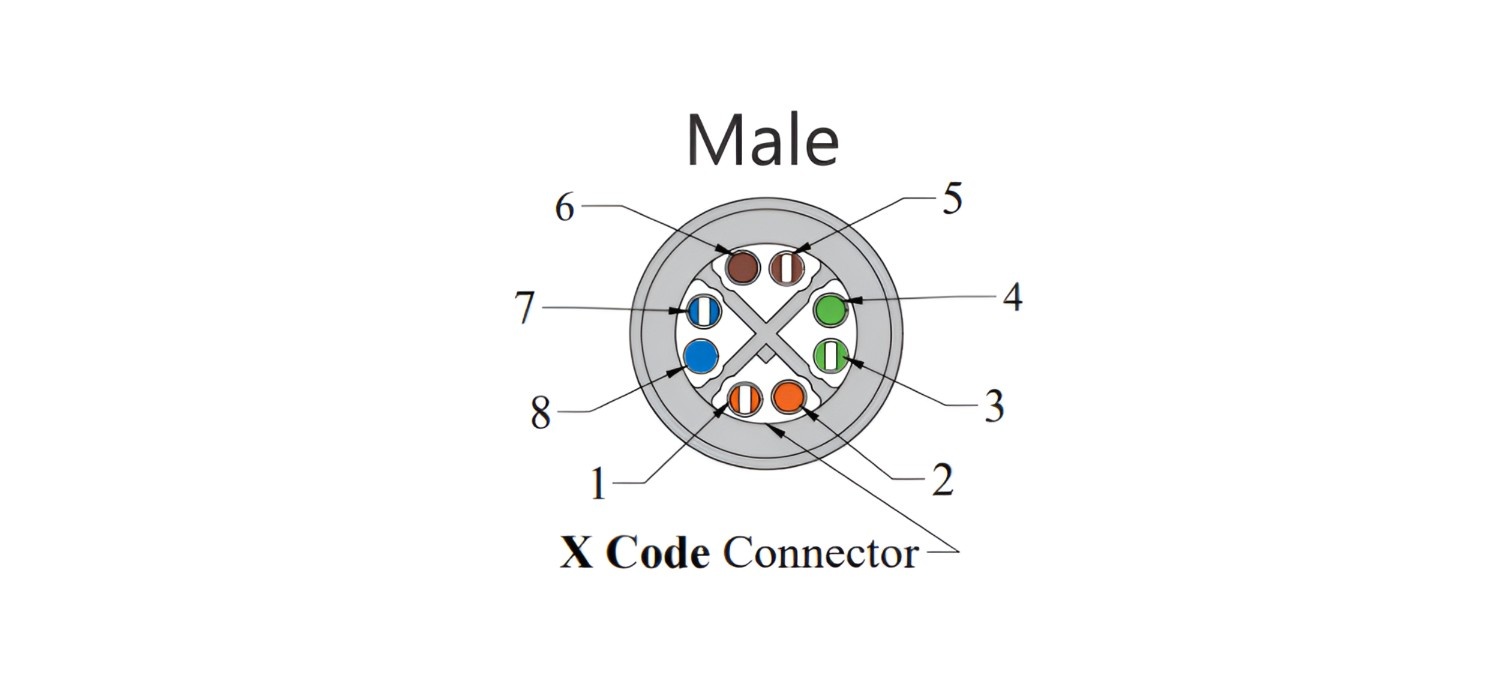

X-Code
IP67,IP68

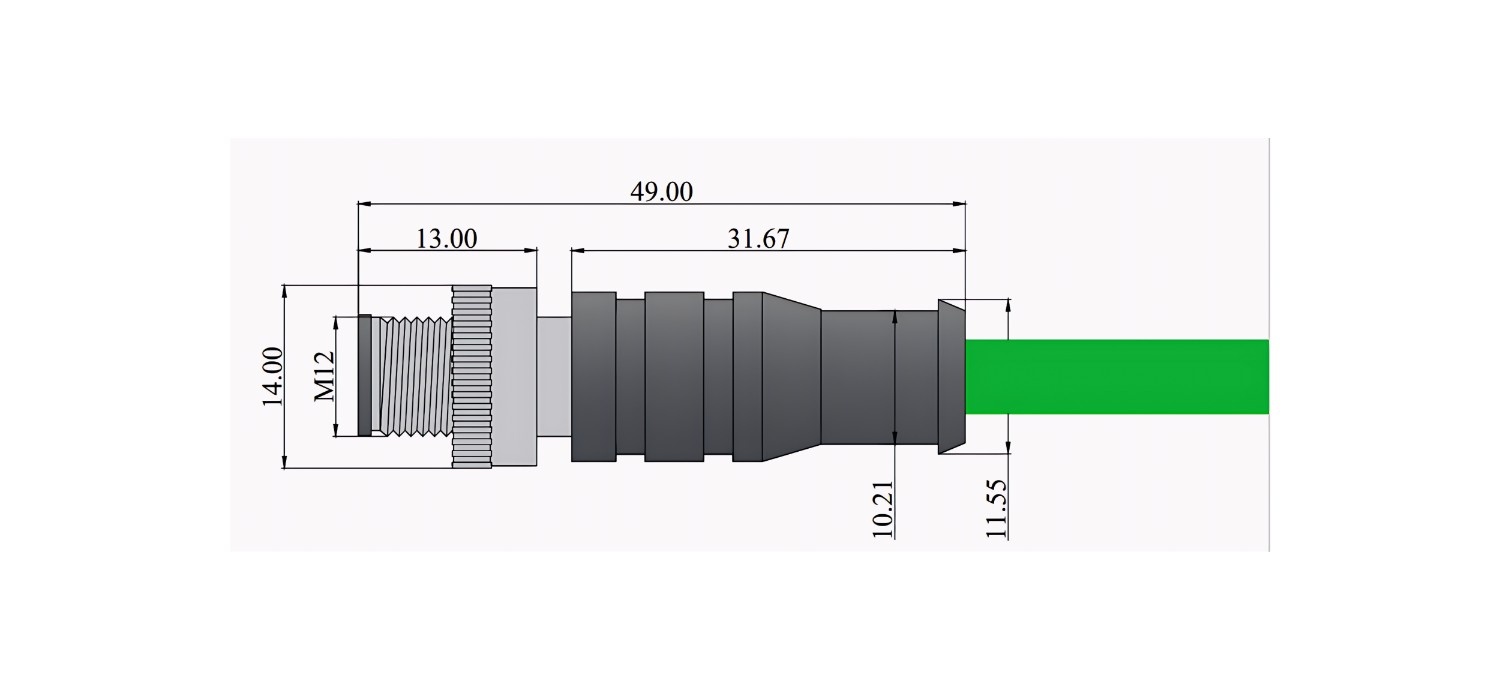

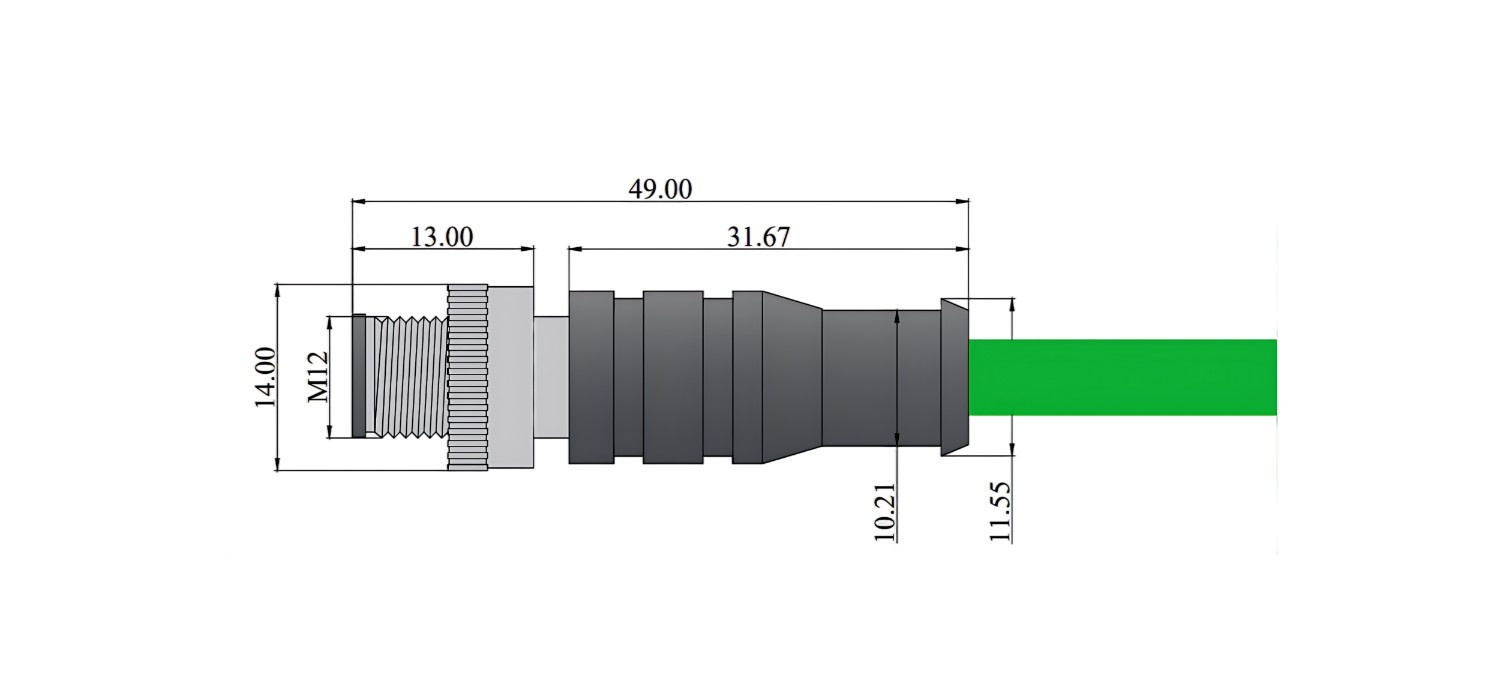

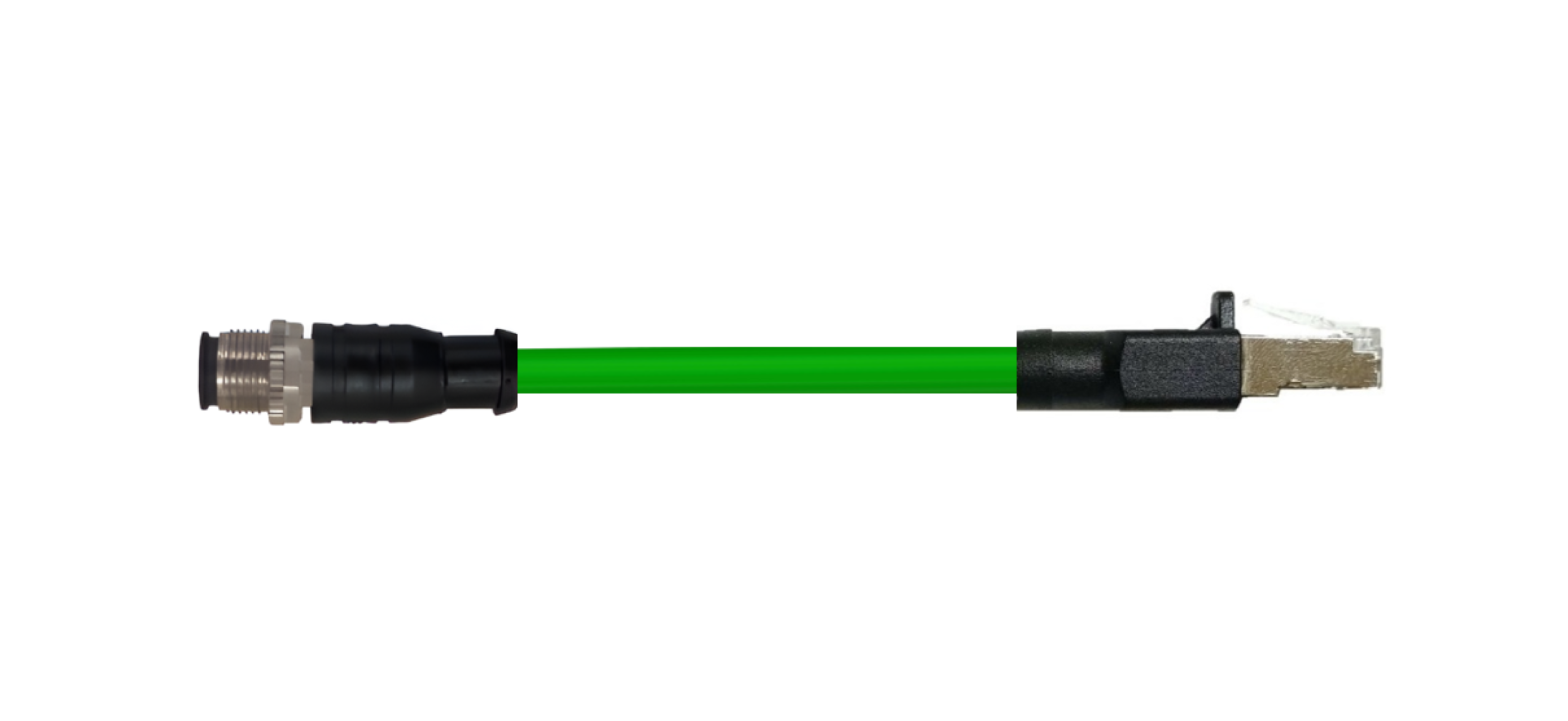

M12 Male Straight X Code to Rj45 Male Straight Pur Shielded Green Cable-25 mtr
Downloads
Quick Specs
- Operating Voltage
- 60V AC/DC *
- Rated Current
- 4A
- Temperature Range
- -25.... +105°C* depending on cable
- Degree of Protection
- IP67,IP68
Technical Specifications
| Specification | Value |
|---|---|
| MPN | 241245-9696-9098-814-2500-Gn |
| Product Type | Profinet |
| Coupling | Inserted |
| Degree of Protection | IP67,IP68 |
| Wire Cross Section | 0.14 sqmm |
| Temperature Range | -25.... +105°C* depending on cable |
| Cable Diameter | 6.2±0.2mm |
| Color of Cable Mantle | Green |
| Material of Cable Mantle | PUR |
| Cable Length | 25 mtr |
| Material of Gland | Brass with Nickel Plating |
| Housing Material | TPU |
| Pin Contact | CuZn |
| Socket Contact | CuSn |
| Cable Drag Chain Suitable | No |
| Tightening Torque Maximum | 0.6 Nm |
| Bending Radius (Fixed) | 5 times of OD |
| Bending Radius (Repeated) | 10 times of OD |
| Contact Plating | Au |
| Operating Voltage | 60V AC/DC * |
| Rated Current | 4A |
| Halogen Free | Yes |

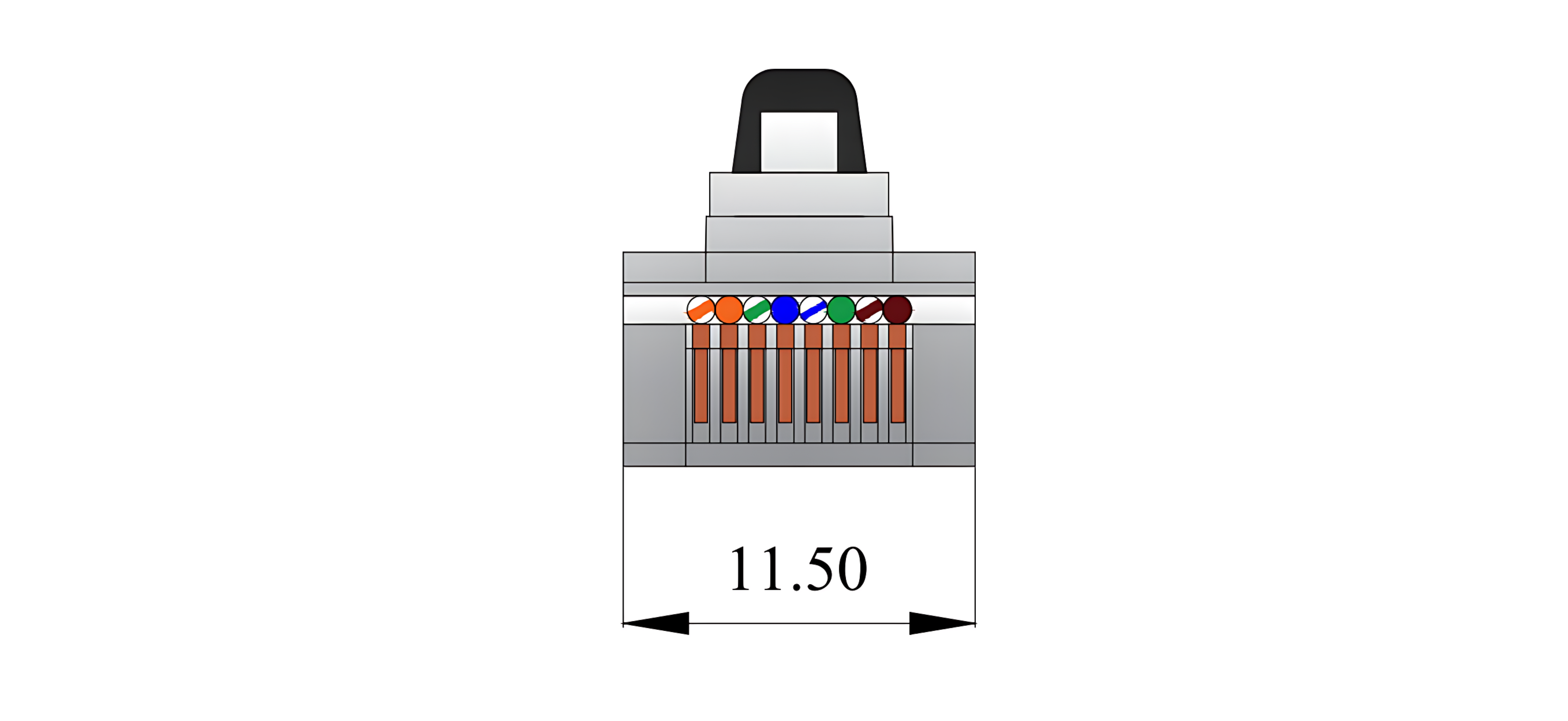

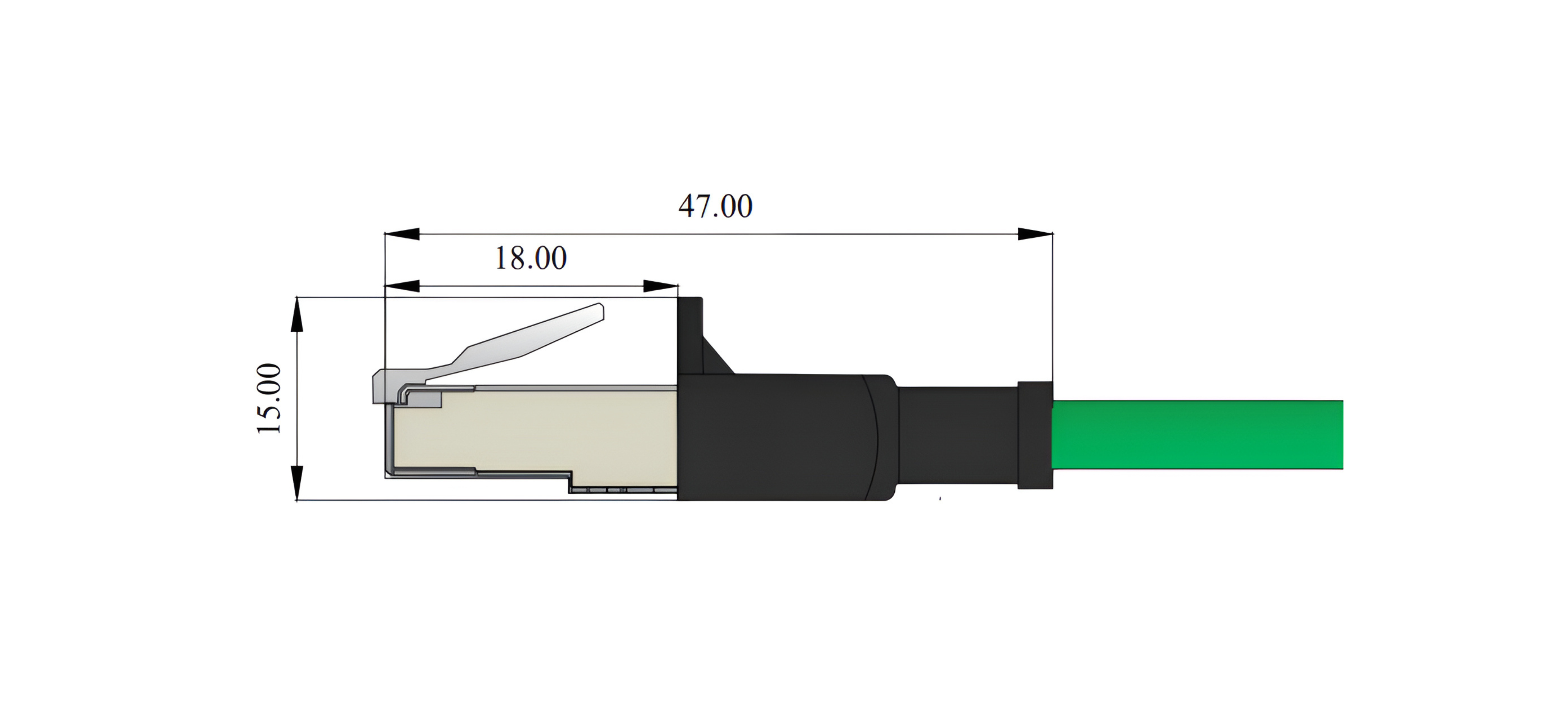

| Connector Type | RJ45 |
| Code | X |
| Stripping Force | 15-35 N |
